Features
  • High Peak Power: Delivers up to 10 times the average power, enabling deep penetration in highly reflective metals like copper and aluminum.
  • Minimal Thermal Deformation: Utilizes ultra-short pulse widths to minimize the Heat-Affected Zone (HAZ), preventing warping in delicate parts.
  • Ideal YAG Replacement: Superior beam quality and energy efficiency compared to traditional Nd:YAG lasers, significantly lowering operational costs.
  • High Efficiency & Durability: Features high wall-plug efficiency and a maintenance-free, long-life laser source.

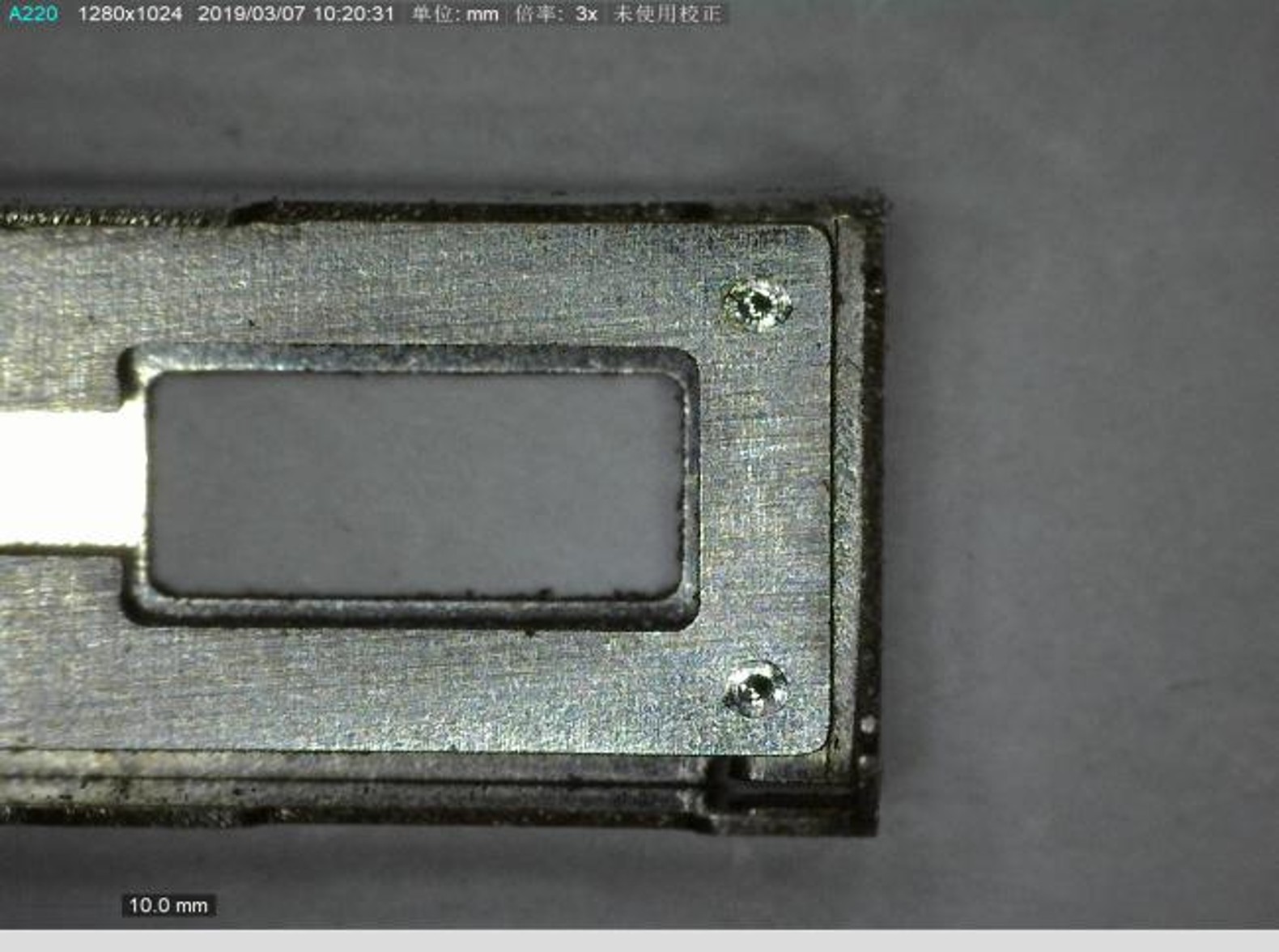

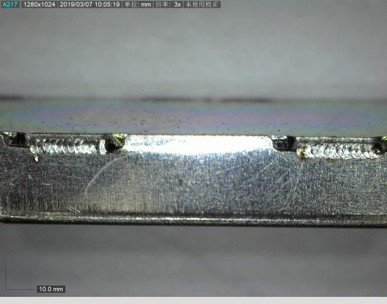

  • Versatile Welding Modes: Supports precise pulse shaping for both high-precision spot welding and continuous seam welding.
Product Manual

Product Details

QCW Pulsed Fiber Laser Welder Series

QCW technology delivers exceptional peak power for high-precision welding with minimal heat impact. The PC-based control system provides a powerful and user-friendly environment for managing complex process data.


1. 4U Rack-mount Type (Integrated/Separated)

  • Standard 4U Design: Compact form factor optimized for standard industrial racks and automated production line cabinets.

  • Up to 4-way Beam Splitting: Supports simultaneous or sequential welding across up to 4 channels with a single laser source.

  • Advanced PC Control: PC-based software allows for precise pulse shaping, real-time monitoring, and easy data management.

  • Seamless Automation: High compatibility with PLC and host systems, ideal for smart factory inline integration.

  • Vision Correction (Optional): Real-time position detection and automatic laser path compensation for high-precision processing.

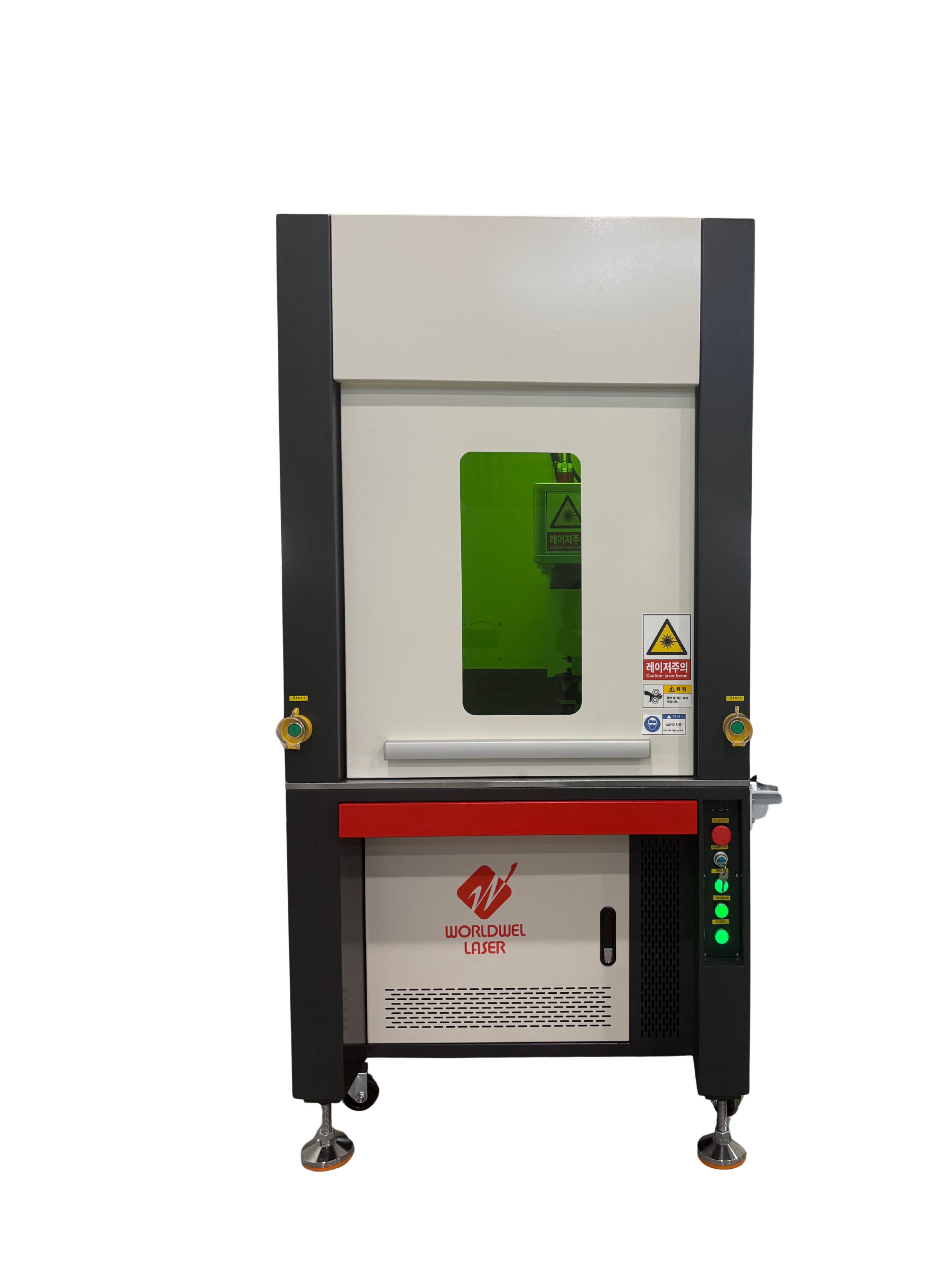

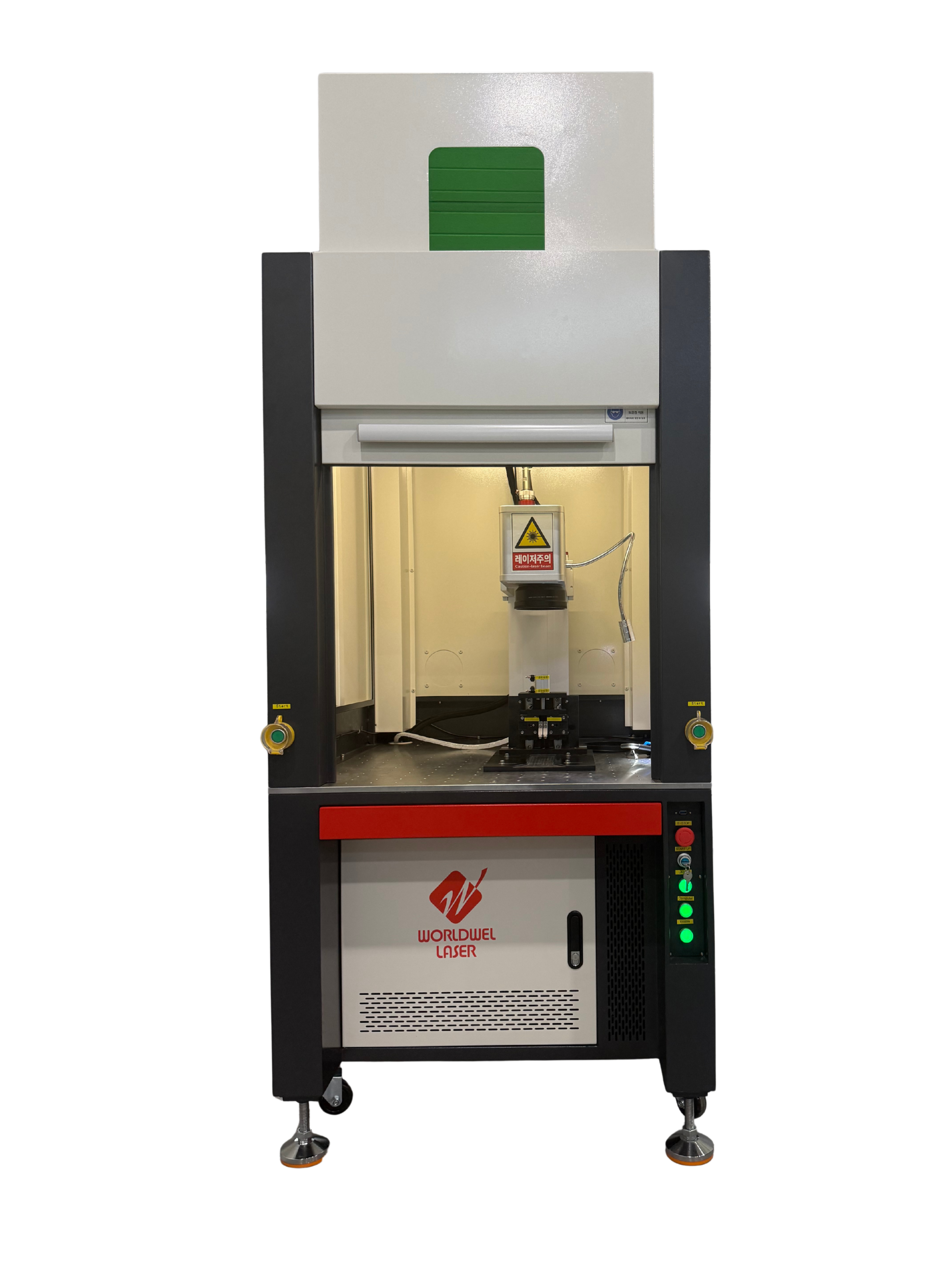

2. Table/Workstation Type (Stand-alone)

  • Versatile Jigging & Expansion: Supports R-axis and various industrial jigs to handle intricate part geometries and diverse tasks.

  • User-Friendly HMI: Large monitor and intuitive PC interface for easy setup, recipe storage, and process control.

  • All-in-One Solution: Independent workstation integrating the laser source, cooling system, and PC controller.

  • Ergonomic & Precise: Designed for operator comfort and compatible with vision monitoring systems for high-precision tasks.

  • Vision Correction (Optional): Real-time position detection and automatic laser path compensation for high-precision processing.


Spec.

List
